Introduction:

An Iot solar base beacon monitoring and tracking system for securing parcel of land.

It integrates WhatsApp chat bot for real time alert, location tracking and monitoring via Google Map

Problem Stament:

⚠️The Rising Threat of Land Theft and Boundary Disputes

Land theft and unauthorized boundary alterations are major issues in both rural and urban areas. Traditional land beacons—physical markers like stones, poles, or concrete pillars—are easily moved, damaged, or replaced without detection. This leads to:

- illegal land grabs by encroachers.

-Costly legal battles due to lack of evidence.

- Delayed detection (owners often realize too late).

Existing solutions like manual inspections, CCTV, or satellite monitoring are expensive, slow, or impractical for remote locations.

While sufficient solutions are yet to be put in place to remedy the situation, here comes the the cost effective Smart land beacon device.

Our Solution:

????Introducing the Iotbase Solar-Based Smart Land Beacon

This low-power, solar-powered IoT device detects tampering and alerts landowners in real time via WhatsApp. Unlike complex cloud-based systems, it operates independently with an on-device web interface for configuration, reducing costs and dependency on external servers.

 ????Key Features

✔ Vibration Sensor– Detects physical impacts or movement attempts.

✔ Neo-6M GPS– Logs exact coordinates; detects if beacon is relocated.

✔ ESP32 Web Interface – No cloud dashboard needed; configure settings directly via Wi-Fi.

✔ WhatsApp Bot Alerts – Instant notifications with Google Maps links.

✔ Solar-Powered– Self-sustaining in off-grid areas.

Working Principles:

????How It Works

1. On-Device Web Interface (No Cloud Dashboard)

- Users connect to the ESP32’s local Wi-Fi hotspot (or integrate with existing networks).

- A simple web page allows configuration of:

  - Vibration sensitivity (adjust threshold for false alarms).

  - GPS geofence radius (how far the beacon can move before alerting).

  - WhatsBot API key & recipient numberb(where alerts are sent).

  - System password (to prevent unauthorized changes).

2. Tamper Detection & GPS Tracking

-User stores the current location of where it's being deployed through a push button

- If someone hits, moves, or tries to uproot the beacon:

  - The vibration sensor triggers an event

- The system checks if movement exceeds the pre-set threshold (configurable via the web interface).

2. Real-Time WhatsApp Alerts

- When tampering is detected, the ESP32 sends an alert via WhatsApp Bot API

- Example alert:

  > ???? Damage Detected! or

  > ???? Location Change!

  > ???? Current location Google map link

Applications:

????Potential Applications:

✅ Scalable for Large Land Areas

- Multiple beacons can be deployed across farm boundaries, forests, or construction sites.

Device Display

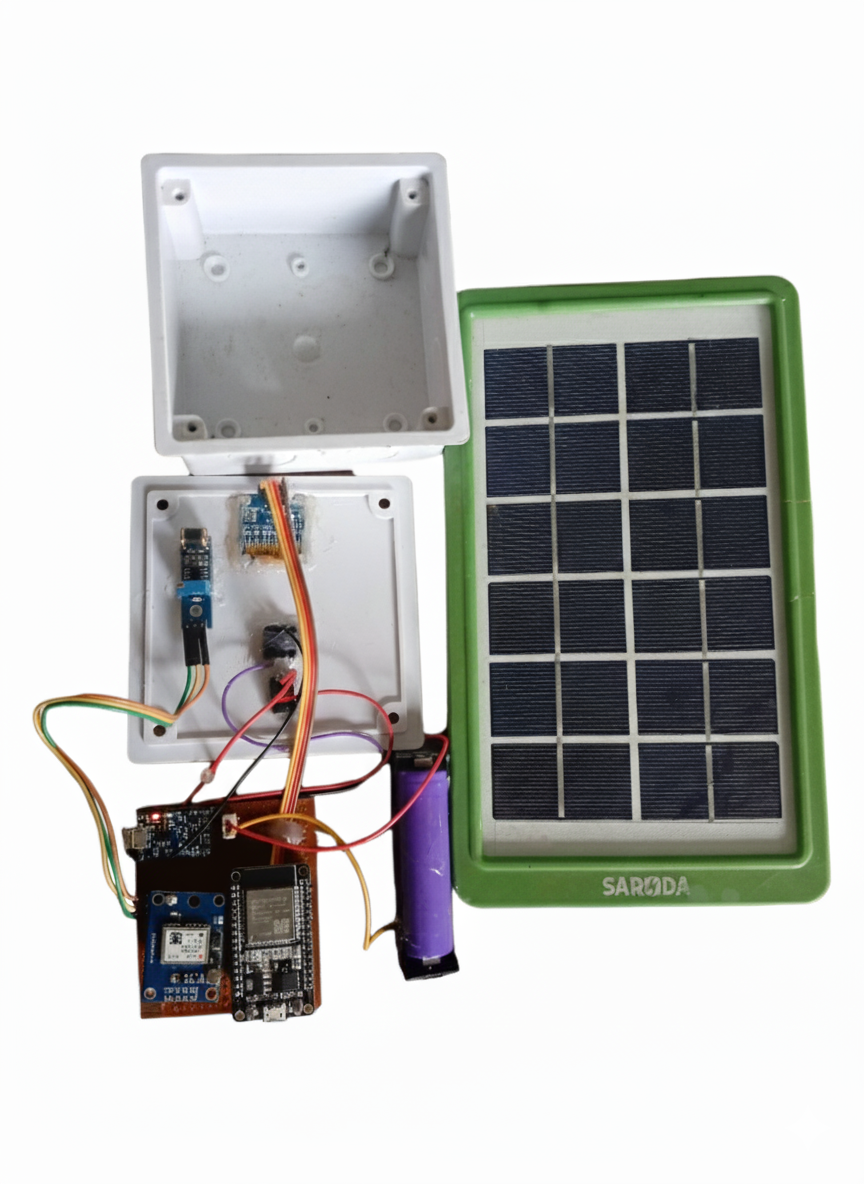

Internal circuitry of Iot Solar based Beacon Monitoring and Tracking Device

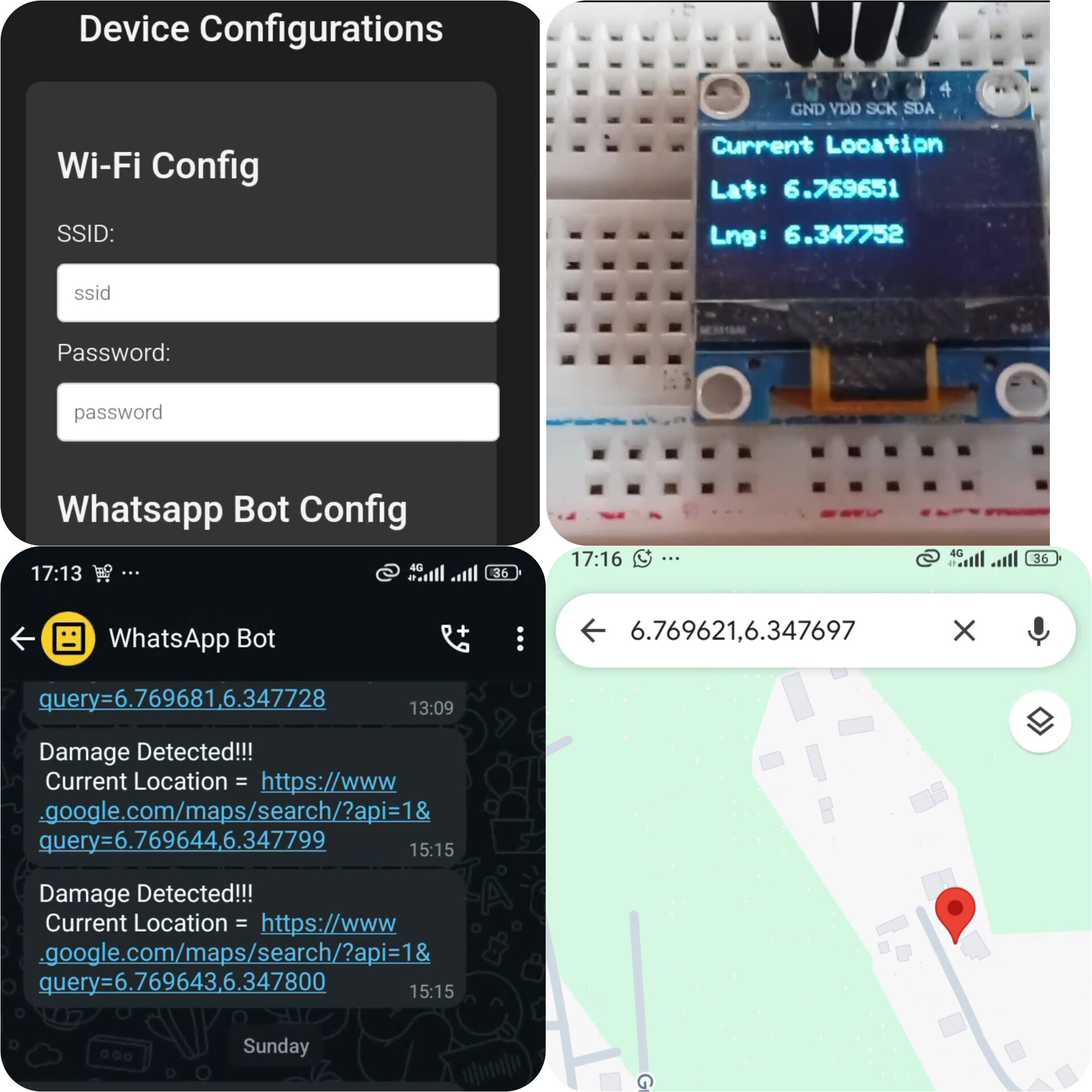

Device simulation showing device configuration interface, WhatsApp Bot for real time monitoring and Google map for location tracking

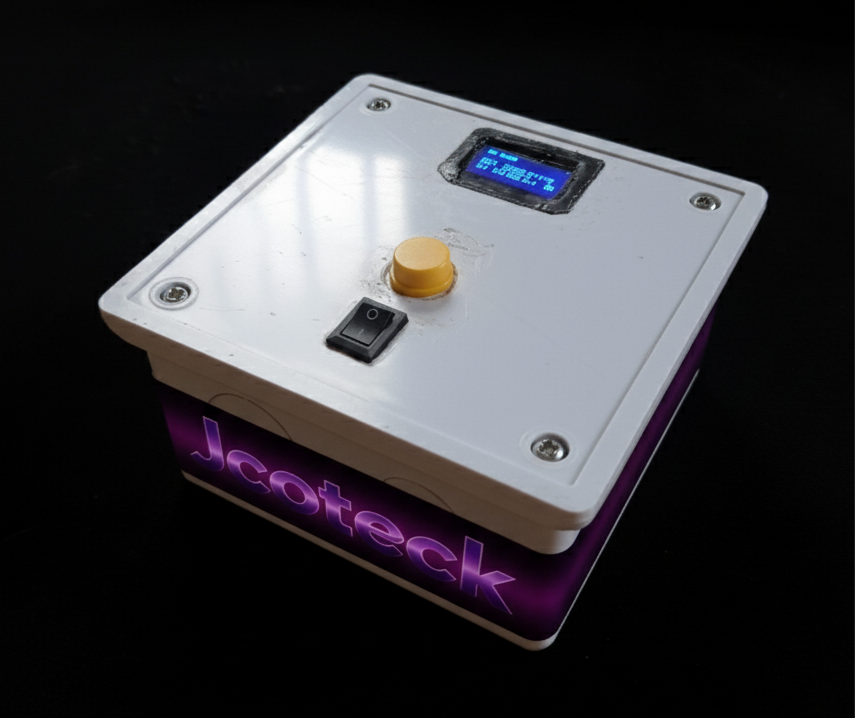

Device completed , Fully functional and ready for delivery

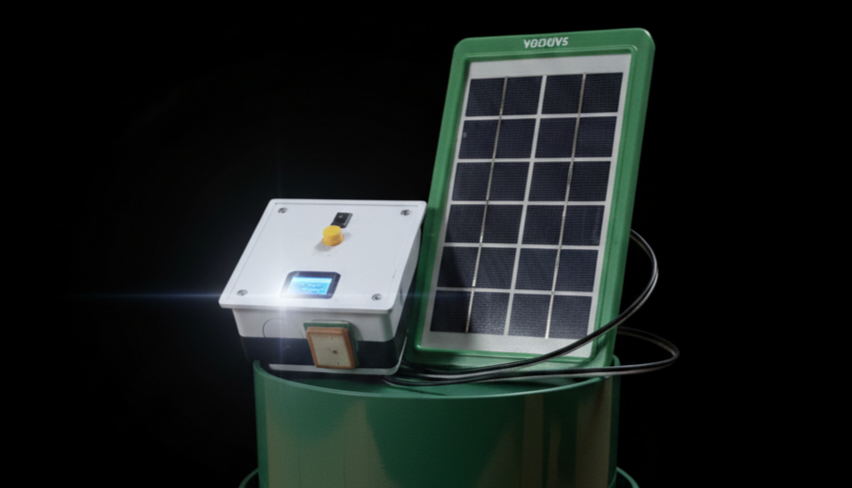

Product display of Iot Solar based Beacon Monitoring and Tracking Device
